10W to 240W LED Flood Light Replacement for up to 600W Metal Halide

The LITE-PS-FL floods available in power range from 10W to 240W are a general purpose LED flood light suitable for residential and commerical use. 10W is equivalent to a 50W halogen and 200W is equivalent to a 600-800W metal halide.

Available in 10W, 20W, 30W, 50W, 70W, 100W, 150W, 200W & 240W options. See also our 300, 400 and 500W LED flood light options.

IP67 Water Proof and Dust Proof Rating.

The flood lights consist of BRIDGELUX® BXCE or CREE® CXA COB LEDs depending on specification on a reflector panel with multi-finned heatsink and rear mounted MeanWell power supply for optimal cooling and increased life span. The positioning of the LEDs allows almost 100% light projection towards your courtyard, carpark or warehouse, unlike the sideways mounted and omni-directional bulb of a metal halide which relies on the quality and efficiency of the reflector.

The higher efficiency of the LED projection system and high lumen maintenance (little light degradation < half that of a metal halide) allows up to 80% energy saving to be achieved. For example, we have case study where 2 x 1000W metal halides were replaced by 1 x 400W LED flood. See 1000W Metal Halide LED Replacement Options

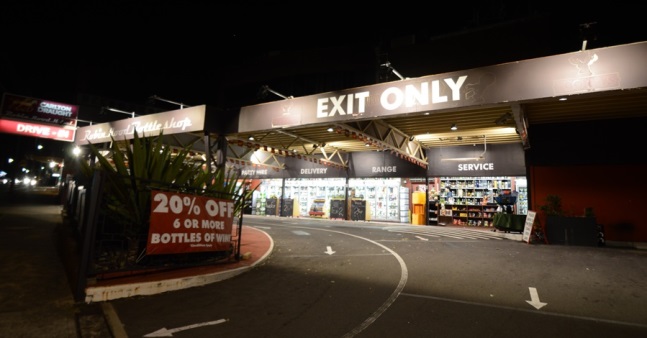

Photo below shows the replacement of 150W Metal Halides with 70W LITE-PS-70 LED Flood Lights:

ENERGY SAVINGS = FAST PAYBACK

The 40W LED flood light replacing a single 100W metal halide offers a payback time of approximately 1 to 1.5 years saving thousands of dollars depending on numbers. For example, 20 Floods has a life time $ saving of > $20,000 over 13 years.

In many applications there is an 80% saving in electricity due to the more efficient use of the LED flood light.

HIGH-GRADE LED LUMINOUS SORUCE

Use of Industry leading US BRIDGELUX® or CREE® CXA COB LED light source or more economical EPISTAR® LED sources. > 50,000 HOURS. Citizen/Nichia also available.

STABLE, EFFICIENT LED DRIVER – HIGH RELIABILTY, HIGH EFFICIENCY, 5 YEAR WARRANTY

Utilizing World's leading MEAN WELL® LED Driver, great luminaire stability, lifespan and optimal performance. Driver mounted externally to increase life span.

Each 400W LED Flood light uses 2 x MeanWell HLG-240H-36A 240W drivers providing a surplus of 80W meaning the driver is operated below maximum capacity which improves life span.

The MeanWell driver has SAA, C-tick, CE, RoHS, UL, TUV, CB certification and 5 year warranty

OPTIMAL HEAT RADIATION PERFORMANCE

Adequate heat radiation area with the use of fine aluminium multi-finned heat sinks and excellent thermal management systems enable the LEDs to operate at optimal temperature levels leading to longer lifetime, efficacy, and color consistency.
